Silicon photonics and electro-absorption-modulated laser designs are implementation choices inside an optical module. They are not complete product specifications, and neither architecture is automatically the better 800G choice. Buyers should first match the Ethernet optical interface, reach, fiber plant, lane architecture, forward error correction, form factor, host power limit, thermal environment, management interface and validation evidence.

Start with the optical application

“800G module” can describe multiple optical interfaces with different reaches, fiber counts, connectors and lane structures. Two modules may both use an OSFP or QSFP-DD form factor while being unsuitable for each other's links.

Define the required application before discussing the transmitter architecture:

• Host electrical interface and supported 800G port mode.
• Parallel or wavelength-multiplexed optical interface.
• Multimode or single-mode fiber.
• Duplex LC, MPO or another specified connector.
• Required reach and measured route loss.
• Forward error correction and lane mapping.
• Remote-end optical interface and interoperability plan.

IEEE 802.3 work on 800 Gigabit Ethernet addresses physical-layer objectives, lane structures and forward error correction. It does not make “silicon photonics” or “EML” a substitute for the complete interface designation.

Understand the architecture without oversimplifying it

An EML combines a laser source with an electro-absorption modulator in an integrated device. Silicon photonics typically uses photonic structures fabricated on a silicon platform and may rely on a separate continuous-wave light source, depending on the module design.

Both approaches can be implemented in different ways. Packaging, coupling, laser placement, driver design, digital signal processing, thermal control and manufacturing test all influence the final module. A buyer should not infer reach, power, reliability or cost from the architecture label alone.

The same caution applies to marketing claims about integration. Higher integration can simplify some assembly steps, but it can introduce different packaging, coupling, thermal and yield challenges. Discrete or hybrid designs can also be optimized effectively. The final product evidence matters more than a technology slogan.

Compare power and thermal behavior at the host level

High-density 800G ports can create a demanding faceplate thermal environment. The relevant question is not only the module's nominal power, but whether the host can cool the installed configuration under the intended airflow, ambient temperature and port population.

Confirm:

• Maximum module power and the applicable power class.
• Host support for the exact form factor and power class.
• Airflow direction, heat-sink design and adjacent-port population.
• Operating temperature limits and any derating conditions.
• Alarm thresholds, module-state reporting and thermal protection behavior.
• Whether the chassis documentation imposes port-location or density restrictions.

Do not compare unverified “typical” power values from different test conditions. Request values tied to the exact part number, interface and operating state.

Check management and operational visibility

The Common Management Interface Specification (CMIS) defines management behavior used by modern pluggable modules. Current OIF material includes CMIS revisions and implementation agreements relevant to high-speed and coherent optics.

For the target module and host, verify:

• Supported CMIS revision and host software requirements.
• Application selection and lane configuration.
• Module, lane and optical-channel monitoring.
• Alarm, warning and fault-state behavior.
• Firmware-management policy where applicable.
• Host interoperability with the module's advertised applications.

Readable telemetry is useful, but telemetry alone does not prove link interoperability. It must be reviewed together with the complete interface and traffic test.

Evaluate signal margin, FEC and fiber plant

At 800G, connector condition, lane consistency and forward error correction can materially affect commissioning. A link that comes up is not necessarily operating with healthy margin.

The acceptance plan should include:

• Fiber type, polarity, connector mapping and route loss.
• End-face inspection and cleaning before mating.
• Pre-FEC and post-FEC error behavior when the host exposes it.
• Lane-level optical readings and alarms.
• Stable traffic under representative load and temperature.
• Reboot, reseat and configuration-persistence checks.

For parallel optics, verify every lane and the complete MPO polarity plan. For duplex wavelength-multiplexed optics, verify the specified optical interface at both ends. Do not mix modules merely because the data rate and connector appear similar.

Ask for evidence tied to the exact part number

A useful supplier response should identify the complete public product, not only its internal photonic platform. Request:

• Exact form factor and optical-interface designation.
• Reach, fiber, connector, wavelength plan and lane architecture.
• Host electrical interface, FEC and application requirements.
• Maximum power, operating temperature and thermal restrictions.
• CMIS behavior and digital monitoring scope.
• Host coding and validation environment.
• Traceable manufacturing and final-test controls.
• Change notification if critical components or firmware change.

If a supplier cannot confirm whether a particular module is silicon-photonics or EML based, decide whether that fact is actually necessary for the deployment. For many buyers, verified interface compliance, thermal fit and consistent production control are more actionable.

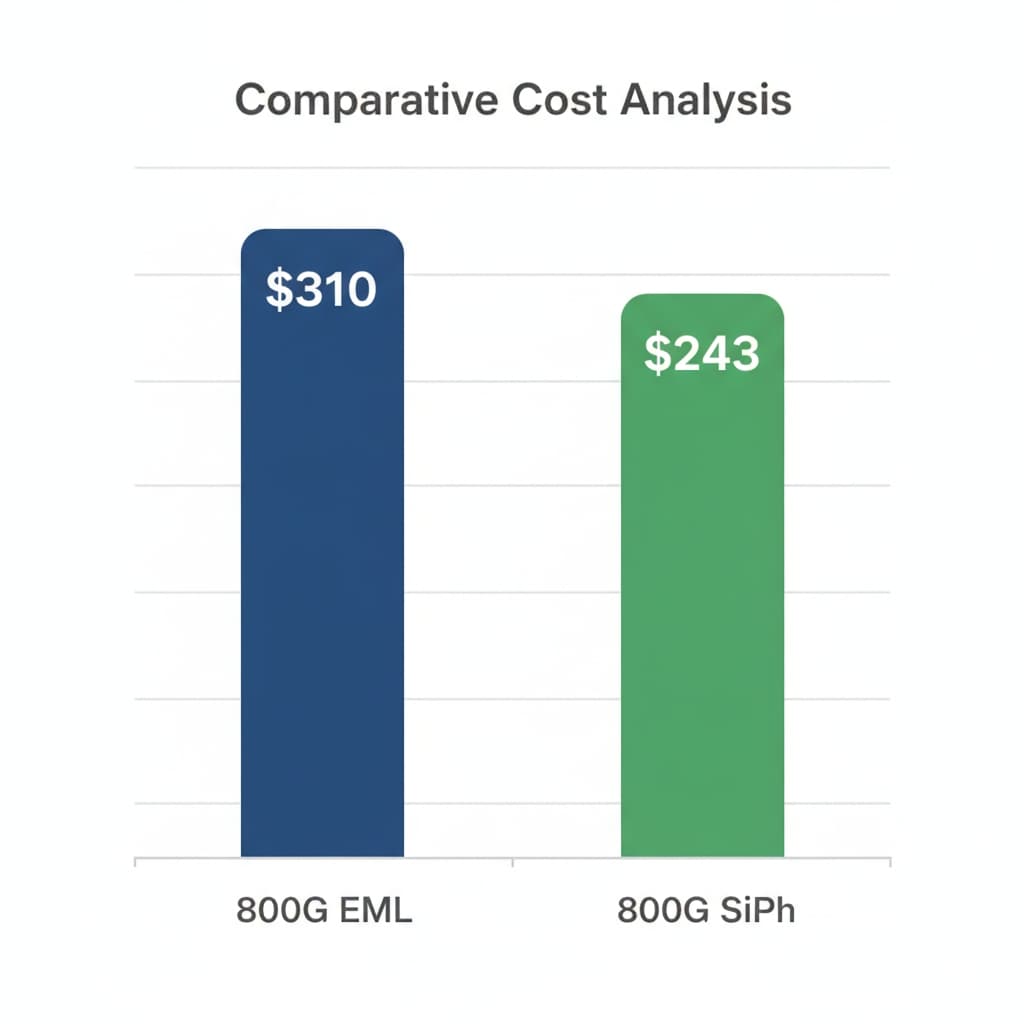

Build a cost model without unsupported BOM claims

Module cost depends on reach, architecture, volume, supply conditions, packaging, digital signal processing, yield, test coverage and commercial terms. A fixed architecture-level saving cannot be treated as universal.

Compare quotations for the same verified interface and include:

• Unit price at the required quantity.
• Engineering samples and qualification time.
• Power and cooling impact at the system level.
• Spare ratio and replacement lead time.
• Warranty, failure analysis and change control.
• Host validation and firmware-support scope.

The most economical module is the one that satisfies the deployment requirements with controlled operational risk, not necessarily the module with the lowest quoted bill of materials.

Frequently asked questions

Is silicon photonics always lower power than EML?

No universal conclusion is valid without exact module data and test conditions. Compare maximum and typical power for the same optical application, then confirm host cooling and density restrictions.

Does the IEEE 800G interface require silicon photonics?

No. Ethernet interface requirements describe interoperable physical-layer behavior. Suppliers may use different internal architectures to implement a compliant product.

Is an EML-based 800G module more reliable?

Reliability depends on the complete design, packaging, thermal management, manufacturing controls and operating conditions. The transmitter label alone is insufficient evidence.

Can silicon-photonics and EML modules interoperate?

They can only be expected to interoperate when both implement the same compatible optical interface and all host, FEC, lane and fiber requirements are met. Internal architecture does not establish interoperability by itself.

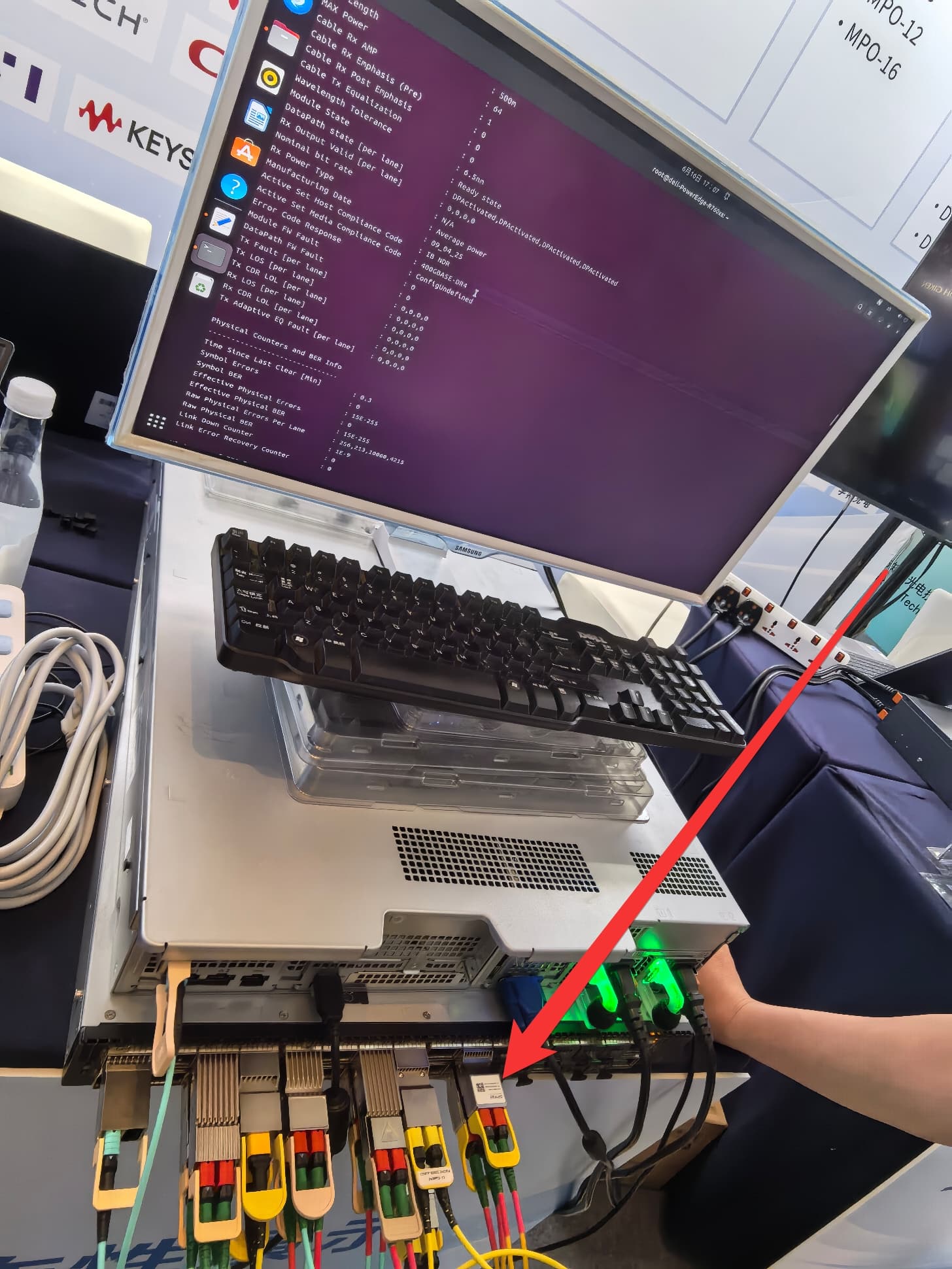

What should be tested before a volume order?

Test the exact modules in the intended hosts with production software, the real fiber and connector path, representative port density, temperature and traffic. Record lane readings, FEC behavior, alarms and recovery after reboot or reseat.

Should architecture be included in the request for quotation?

Include it when the project has a documented architecture requirement. Otherwise, request the measurable interface, power, thermal, management, compatibility and quality criteria that determine deployment success.

Review the complete 800G link before ordering

Share both host platforms, software versions, port mode, required optical interface, reach, fiber, connectors, measured loss, FEC, port density, temperature, quantities and validation requirements. Axonode can coordinate sourcing, coding and verification with vetted OEM manufacturing and testing partners according to the project requirements.
