An SFP can appear in a switch or router inventory while the Ethernet link remains down. Detection only confirms that the host can read some module information. It does not prove that the host accepts the coding, the port is configured correctly, the two optical interfaces match, or the fiber path is working.

Start by identifying the exact symptom. An unsupported-transceiver message, a module that is absent from inventory, a detected module with no link, and a link that repeatedly flaps are different problems. Preserve the device output before changing the configuration or replacing hardware.

First identify what the host is actually reporting

Do not diagnose from the word "down" alone. Save the full warning or alarm, interface state, module inventory, software version and digital diagnostics before you change anything.

Recognition, coding and full compatibility are different checks

Transceiver coding controls identity and management information presented to the host. A suitable coding profile may be required for recognition or acceptance, but coding is only one compatibility layer.

A module can be readable while the host still rejects it. It can also be accepted while the link remains down because of port configuration or optical conditions. Full compatibility can include:

• Host recognition and acceptance
• Correct speed and port mode
• Breakout or lane mapping where applicable
• Forward error correction (FEC) settings where applicable
• Digital optical monitoring (DOM), also called digital diagnostic monitoring (DDM), behavior
• Optical interoperability with the remote transceiver
• Stable traffic under the intended configuration

An approved coding profile should therefore be described as coding evidence, not as proof of universal compatibility.

Check the host and software context before changing configuration

Record the complete device model, line card or network adapter where applicable, software or firmware release, port identifier and intended operating mode. Support can differ between product families, cards, ports and releases from the same vendor.

An official vendor compatibility matrix or platform document is the first place to check a rejection message. For example, Cisco's guidance for an unsupported transceiver on a specific Catalyst 3850 sub-module tells users to verify the exact switch, sub-module and software version before treating the optic as faulty. That is a platform-specific procedure, not a universal command for every Cisco device or another vendor's equipment.

Do not enter an "allow unsupported transceiver" or err-disable command copied from a forum without confirming that it applies to the exact platform and release. Such a command may be unavailable, unsupported, operationally restricted or insufficient to establish a link. Follow the host vendor's documentation and your organization's change-control process.

If the module is accepted but the link stays down, check the port

Confirm the operational requirements at both ends:

1. Is the interface administratively enabled?
2. Is the configured speed supported by the port, module and remote endpoint?
3. Is the port in the intended native or breakout mode?
4. Are the lane mapping and FEC settings correct where they apply?
5. Are both ends using compatible Ethernet optical applications rather than merely the same form factor?

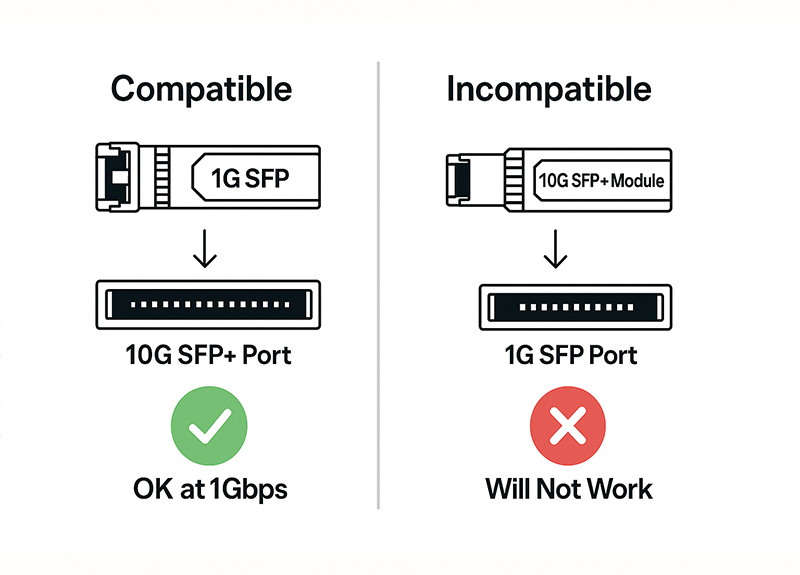

Do not assume that a multi-rate cage will automatically operate every lower-speed module. Do not assume that two modules are interoperable because both fit an SFP-family port.

Verify both optical endpoints and the fiber path

When host acceptance and port settings are not the obvious cause, inspect the complete optical path.

• Confirm the optical application at both ends, including data rate, fiber type, connector and wavelength plan.

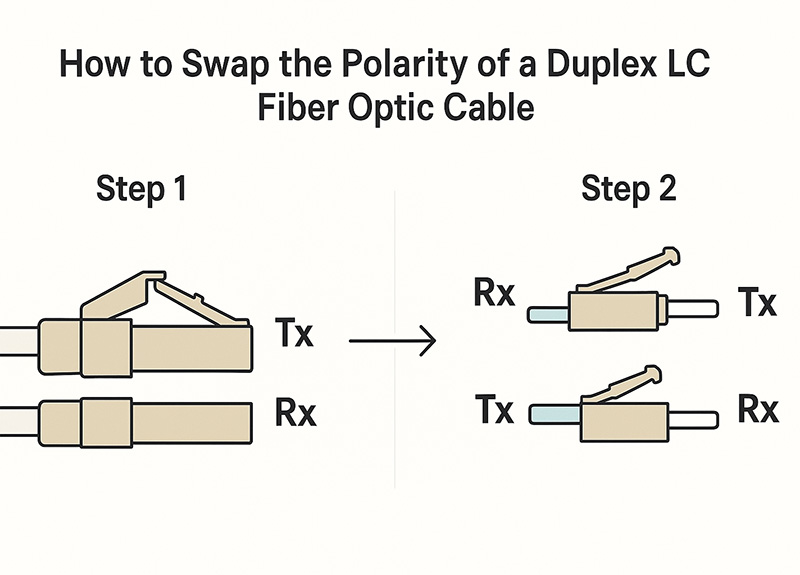

• For duplex optics, verify transmit-to-receive polarity and inspect both fiber paths.
• For bidirectional (BiDi) optics, verify complementary transmit and receive wavelengths; do not simply swap connectors as if the link used two fibers.
• Confirm that single-mode and multimode components have not been mixed.
• Inspect and clean accessible connector end faces using an appropriate controlled process.
• Account for patch panels, adapters, splices, multiplexers and other passive loss.
• Check whether received power could be below receiver sensitivity or above the permitted maximum input for the exact optic.

Nominal reach is not proof that a link will operate. The actual path loss and the exact transmitter and receiver limits still matter.

Use DOM/DDM as diagnostic evidence, not proof of compatibility

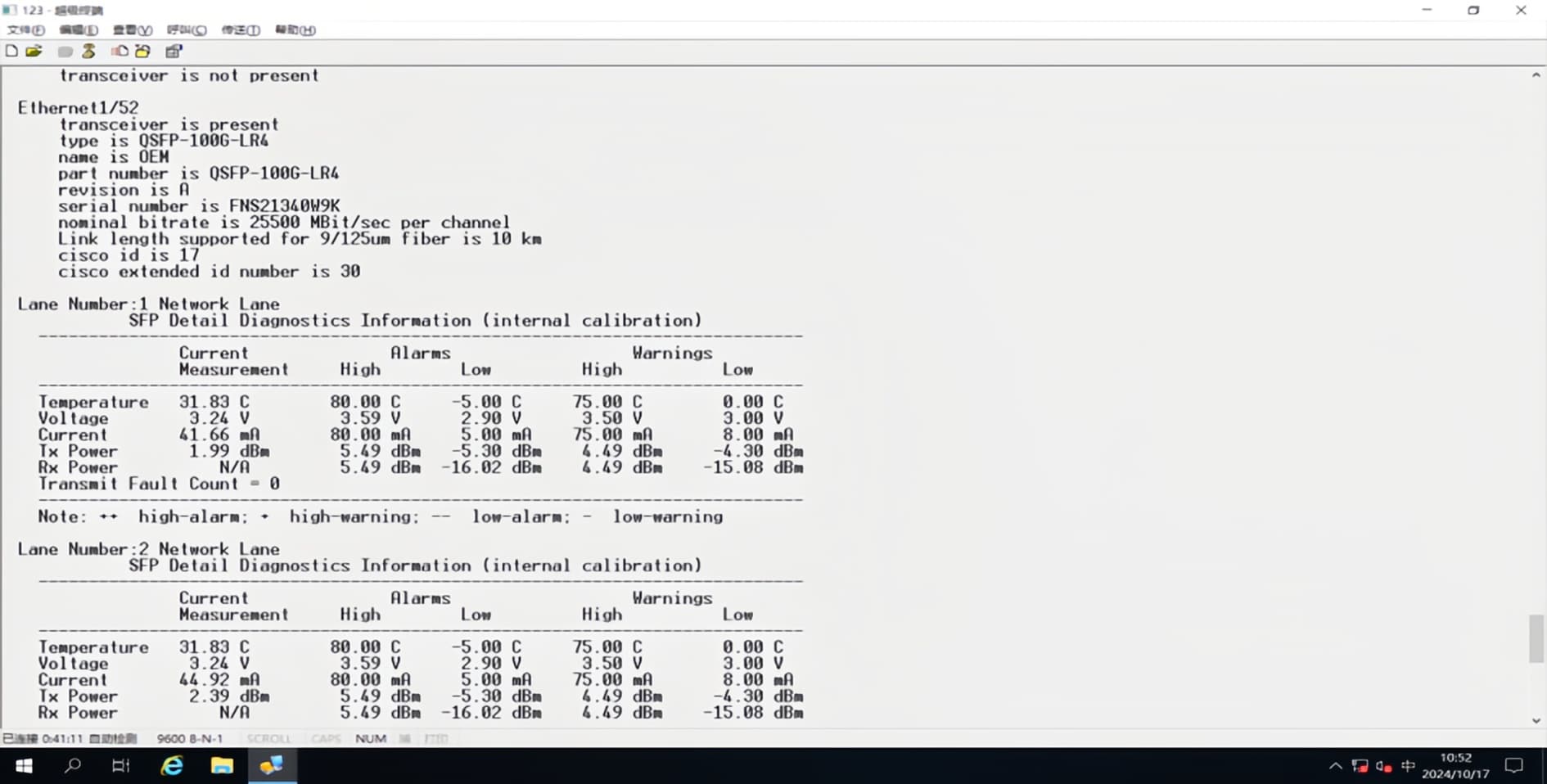

When supported by both the module and host, DOM/DDM can expose values such as transmit power, receive power, temperature, supply voltage and laser bias current. The SNIA SFF-8472 specification defines the management interface used by many SFP-family modules, while platform documentation determines how a particular host presents the data.

DOM/DDM can help you answer questions such as:

• Is the module transmitting measurable optical power?
• Is received power present?
• Is a value above or below the recorded warning or alarm threshold?
• Did the readings change after cleaning, reconnecting or substituting one controlled component?

It cannot prove full compatibility. A host may display diagnostic data even when another policy or configuration prevents the link from operating. Conversely, missing or unusual readings can result from host support, module capability, coding, calibration or software behavior; they do not prove that the module has failed.

Compare readings only with the limits for the exact module and the interpretation documented for the host. Do not use generic dBm thresholds taken from another optic.

Isolate the fault without changing several variables at once

Use controlled substitution after recording the original state:

1. Test a known-good module of the correct type in the same port.
2. Test the suspect module in a known-good supported port when safe and appropriate.
3. Test with a known-good fiber path or short controlled patch connection that matches the optical interface.
4. Change one component at a time and record whether the symptom follows the module, port, remote endpoint or fiber path.
5. Restore the original configuration or follow the approved rollback plan after the test.

A known-good result narrows the fault domain; it does not automatically validate the suspect module in every other platform.

Information to collect before requesting compatibility support

Send the following information rather than only saying "the SFP does not work":

• Host vendor and complete model at both ends
• Line card, network adapter or sub-module where applicable
• Software or firmware version
• Port identifier, configured speed and operating mode
• Module manufacturer and full part number at both ends
• Exact warning, alarm or log message
• Whether the module is absent, rejected, detected with link down, or flapping
• Fiber type, connector, distance and passive components
• Wavelengths or optical application at both ends
• Available Tx/Rx power and alarm information
• FEC, breakout or lane settings where applicable
• Results of any controlled known-good substitution

The Axonode optical transceiver catalog can help identify the relevant product family. Product family alone is not enough to confirm a replacement; the host, coding and link conditions still need review.

Frequently asked questions

Why can a switch read the SFP part number but still reject it?

Reading the identity and accepting the module are separate host behaviors. The device may read the module's management information and then apply a supported-optics or coding policy. Check the exact warning, platform, line card and software release against official documentation.

Does an unsupported-transceiver warning prove the optic is faulty?

No. It reports a host acceptance or policy condition, not a complete hardware diagnosis. Verify the supported configuration and coding requirements before concluding that the module is defective.

Does readable DOM/DDM prove compatibility?

No. It shows that the host can access supported diagnostic information. It does not by itself prove correct coding, port configuration, optical interoperability or stable traffic.

Why is the module detected but the link light still off?

Possible fault domains include administrative state, speed or mode, FEC, breakout configuration, the remote endpoint, optical application, polarity, contamination, path loss and received power. The exact device state and measurements are needed to narrow the cause.

Should I use an unsupported-transceiver command?

Only when the exact platform documentation and your operational policy support it. Commands differ by vendor, product family and software release, and accepting a module does not correct a mismatched port or optical path.

What should I send when requesting a replacement recommendation?

Provide both host models, software versions, port configuration, current and remote module part numbers, the full warning, fiber details, link distance and available Tx/Rx readings. This allows the replacement and required coding to be reviewed against the actual deployment.

Separate the symptom before replacing the optic

An inventory entry, an unsupported warning and a link-down state describe different stages of the interface. Preserve the evidence, verify the host context, check the port and optical path, then isolate one variable at a time.
