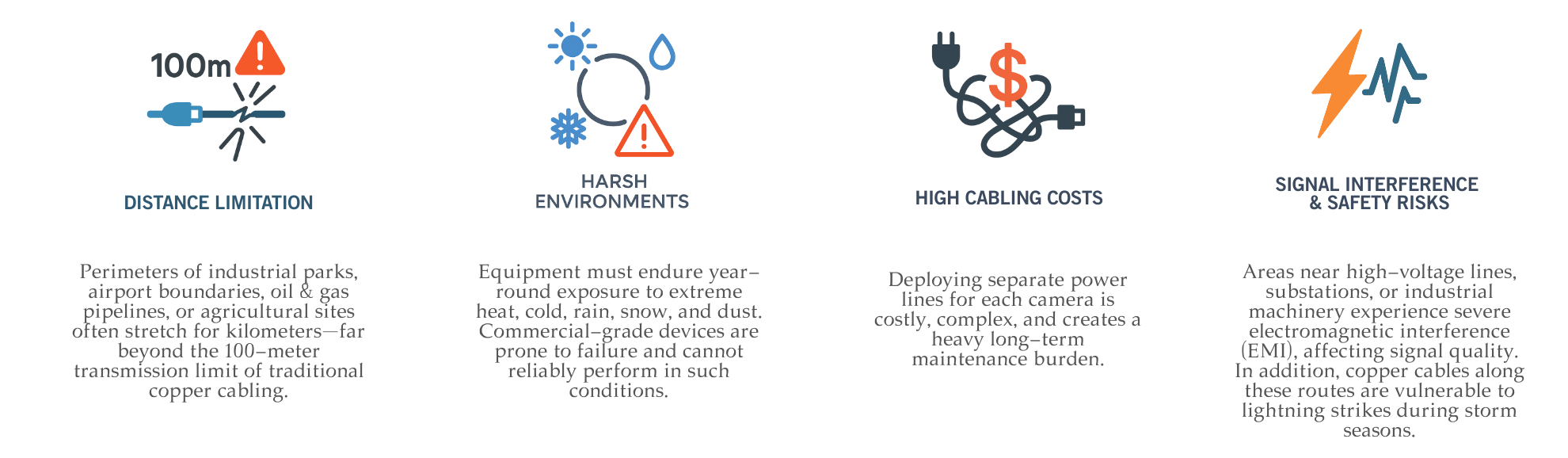

Are you facing one or more of the following challenges in securing large perimeter areas?

AXONODE's solution directly overcomes these challenges by creating a robust fiber optic backbone. Our industrial-grade components form the core of this architecture, ensuring reliable, long-distance data transmission even in the most demanding conditions.

The deployment architecture is simple and scalable:

• Control Room: Your NVR or servers connect to a central core switch, forming the network's command center.

• Fiber Backbone: A fiber optic cable, enabled by our industrial SFP modules, creates a high-speed, interference-free data highway that can span over 20 km.

• Remote Nodes: IP67-rated outdoor enclosures are installed at strategic points to house field equipment.

• Industrial PoE Switches: The fiber backbone terminates into the SFP port on an industrial-grade PoE switch inside each enclosure, ensuring a stable connection.

• The Last Mile: The switch delivers both data and power (PoE) to 1–3 nearby IP cameras through a single, standard Ethernet cable.

• Flexible Topologies: Switches can be linked in a daisy-chain or self-healing ring topology, maximizing network uptime while minimizing fiber cabling costs.

1. Industrial-Grade SFP Transceivers (Our Core Product)

• Designed for Harsh Environments: Wide temperature range of -40°C to +85°C, ensuring reliable performance in any season.
• Guaranteed Transmission: Powered by leading laser brands (e.g., Avago, Ⅱ-Ⅵ etc), available in 20 km, 40 km, and 80 km options.

• Superior Compatibility: Thoroughly tested for seamless operation with major switch brands including Cisco, Hp, Juniper, Planet, Moxa, and more.
• Low Power & High Reliability: Plug-and-play functionality with long-term stable optical performance.

2. Industrial PoE Switches (Recommended Pairing)
We recommend switches that include SFP uplinks, PoE+ (IEEE 802.3at) support, and a wide operating temperature range of -40°C to +85°C for optimal performance.

Benefits of the AXONODE Solution

By building your surveillance network on our industrial-grade fiber optic components, you gain a system that is not only powerful but also cost-effective to own and operate.

• Unmatched Reliability, Lower Maintenance: Our industrial SFP modules boast an MTBF (Mean Time Between Failures) of over 1 million hours. This extreme durability minimizes the need for on-site repairs, significantly cutting your long-term operational costs (OPEX).

• Simplified Scaling & Expansion: The daisy-chain and ring topologies allow you to easily add new cameras or extend coverage along the perimeter. You can expand your network incrementally without the massive cost of re-routing main fiber lines from the control room.

• Immunity to Environmental Threats: Fiber optic transmission is naturally immune to electromagnetic interference (EMI) from power lines or machinery and is not susceptible to lightning strikes. This ensures a stable, clear video feed, regardless of weather or industrial noise.

• Streamlined Installation with PoE: Power over Ethernet (PoE) technology delivers both data and power to your cameras through a single Ethernet cable. This simplifies cabling, reduces material and labor costs, and speeds up deployment.

Build Your Secure Optical Backbone Today

Ready to create a robust and future-proof surveillance network for your critical infrastructure? Contact our specialists to discuss your project requirements.
