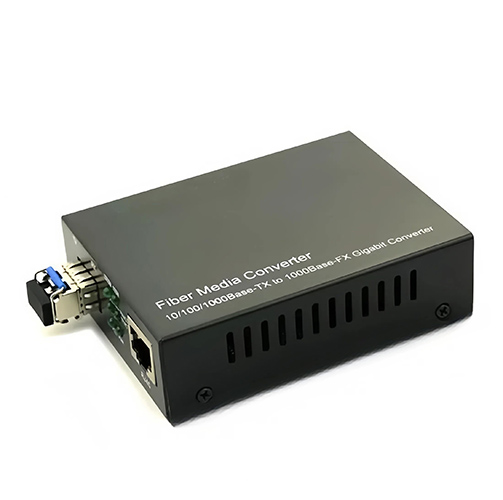

Gigabit Ethernet Fiber Media Converter Kit - Extend Your Network up to 20km
10/100/1000M RJ45 to 1000Base-LX Single-Mode Fiber (20km/12.4mi), Includes SFP Module
Key Benefits:
Complete Kit, Zero Hassle: Includes both the media converter and a pre-tested 20km SFP module. Ready to deploy out of the box.
Plug & Play Simplicity: No configuration needed. Auto-negotiation for 10/100/1000M speeds and MDI/MDI-X simplifies setup.
Reliable, High-Speed Link: Enjoy a stable, interference-free Gigabit connection over long distances.
3-Year Warranty & Expert Support: Purchase with confidence.
Built for Performance and Simplicity
Extend Your Network Over Fiber: Instantly convert your copper RJ45 connection to a long-reach fiber link, protecting your existing hardware investment.
True Plug & Play: Auto-detects 10/100/1000Mbps speed and duplex mode. Auto MDI/MDI-X means no special cables are needed.
Future-Proof Flexibility: The MSA-compliant SFP slot allows you to easily swap modules for different distances or fiber types in the future.
At-a-Glance Diagnostics: Clear LED indicators for Power, Fiber (FX), and Copper (TX) status simplify installation and troubleshooting.
Robust Metal Housing: A durable, compact metal case ensures superior heat dissipation for long-term, stable operation.
Flexible Deployment: Use as a standalone desktop unit or install in our 14-slot chassis for a clean, scalable rack-mount solution.
Technical Specifications
Interface & Ports
| Feature | Specification |
| Copper Port | 1 x 10/100/1000BASE-T RJ45 Port with Auto-MDI/MDIX |
| Fiber Port | 1 x 1000BASE-X SFP Slot |
| Supported Copper Cable | Cat5e, Cat6 or higher, up to 100m (328 ft) |
| Included SFP Module | 1 x 1000BASE-LX Single-Mode SFP |
| Fiber Connector | Dual LC |
| Wavelength | 1310nm |
| Max Fiber Distance | 20 km (12.4 miles) over 9/125µm Single-Mode Fiber (SMF) |
Performance
| Feature | Specification |
| Data Rate | 10/100/1000 Mbps |
| Duplex Mode | Full-duplex and Half-duplex auto-negotiation |
| Flow Control | IEEE 802.3x for Full-duplex, Back Pressure for Half-duplex |
| Jumbo Frame | Supports up to 9K bytes |
| Buffer Memory | 256 KB |
| MAC Address Table | 4K |
| Optical Power (SFP) | Tx Power: -9 to -3 dBm, Rx Sensitivity: < -22 dBm |
Diagnostics
| LED Indicator | Status |
| PWR | Power On/Off |
| FDX | Full-duplex mode is active |
| FX LINK/ACT | Fiber link is established / Data activity |
| TP LINK1000 | Copper link is 1000Mbps |
| TP LINK100 | Copper link is 100Mbps |
| TP ACT | Copper data activity |
Physical & Environmental
| Feature | Specification |
| Power Supply | External AC-DC Adapter (Input: 100-240V AC, Output: 5V DC 1A) |
| Power Consumption | < 3W |
| Dimensions (WxDxH) | 70 x 93 x 26 mm (2.76" x 3.66" x 1.02") |
| Housing | Metal, Black |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 90% RH (non-condensing) |
Compliance & Warranty
| Feature | Specification |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x |
| Certifications | CE, ROHS, FCC Class A |
| Laser Safety | FDA, IEC/EN 60825-1 |
| Warranty | 3-Year Manufacturer Warranty |
What's in the Box?
1 x Gigabit SFP Media Converter
1 x 1000BASE-LX SFP Transceiver (20km, 1310nm, LC)
1 x Power Adapter (Please select your region's plug type: US, EU, UK, AU)
1 x User Guide
Proven Compatibility
Our media converters are designed to be highly compatible with major networking brands. This kit is a reliable, cost-effective alternative to solutions from:
Allied Telesis (e.g., AT-GS2002/SP)
Black Box (e.g., LGC200A)
D-Link (e.g., DMC-G01LC, DMC-805G)
Planet (e.g., GT-805A)
StarTech (e.g., MCM1110SFP)
TP-Link (e.g., MC220L)
TRENDnet (e.g., TFC-1000MGA)
And many other MSA-compliant devices.
Disclaimer: All third-party trademarks are the property of their respective owners. Mention of them does not imply any affiliation or endorsement.
Ordering & Customization Options
This product is a pre-configured kit for 20km applications. We also offer solutions for other distances and fiber types. Explore our full range or contact our support team for custom requirements.
Explore other popular solutions:
550m Multimode Converter Kit (for data centers & short links)
40km Single-Mode Converter Kit (for longer campus or city links)
80km Single-Mode Converter Kit
Bi-Directional (BiDi) Converter Kits (save on fiber costs)
