40-Channel DWDM Mux Demux, 100GHz C21-C60, with 1310nm & Monitor Ports, 1U Rack Mount
Product Overview
Unlock the ultimate capacity of your fiber optic network with the AxonoSolution 40-Channel DWDM Mux Demux. Engineered for high-performance and maximum flexibility, this passive optical multiplexer allows you to transmit up to 40 independent, high-speed data channels over a single pair of optical fibers.
Based on industry-leading Athermal Arrayed Waveguide Grating (AAWG) technology, this module ensures carrier-grade reliability for services up to 400G and beyond. With integrated 1310nm and Monitor ports, it is the definitive solution for data centers, carriers, and enterprises facing fiber exhaustion.
Key Features at a Glance
Massive Capacity Expansion: Transmit 40 independent channels (from C21 to C60) over a single fiber pair.
High-Performance Optics: Ultra-low insertion loss (≤3.5dB) and high channel isolation (≥30dB) for superior signal integrity.
Future-Proof Flexibility: Integrated 1310nm port for seamless integration of legacy traffic (e.g., 10G LR4, 100G LR4).
Simplified Operations: Built-in monitor port for real-time network diagnostics without service interruption.
Carrier-Grade Reliability: Based on stable AAWG technology with a wide operating temperature range.
Specifications
| Number of Channels | 40 Channels | Wavelengths | C21-C60 (1560.61 nm - 1529.55 nm) |
| Channel Spacing | 100GHz (0.8 nm), ITU-T G.694.1 Grid | Technology | Athermal Arrayed Waveguide Grating (AAWG) |
| Fiber Type | Dual Fibe | Connector Type | LC/UPC |
| Insertion Loss (Channel Port) | ≤ 3.5dB | Insertion Loss (1310nm Port) | ≤ 0.8dB |
| Insertion Loss (Monitor Port) | ≤ 26dB (for 1% tap) | Return Loss | ≥ 40dB |
| Channel Isolation (Adjacent) | ≥ 30dB | Channel Isolation (Non-adjacent) | ≥ 40dB |
| Passband Ripple | ≤ 0.5dB | Polarization Dependent Loss (PDL) | ≤ 0.3dB |
| Operating Temperature | -20°C～+70°C(-4°F to 158°F) | Polarization Mode Dispersion (PMD) | ≤ 0.2ps |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) | Mounting | 1U 19-inch Rack Mountable |
| Dimensions (HxWxD) | Please refer to product images or inquire |

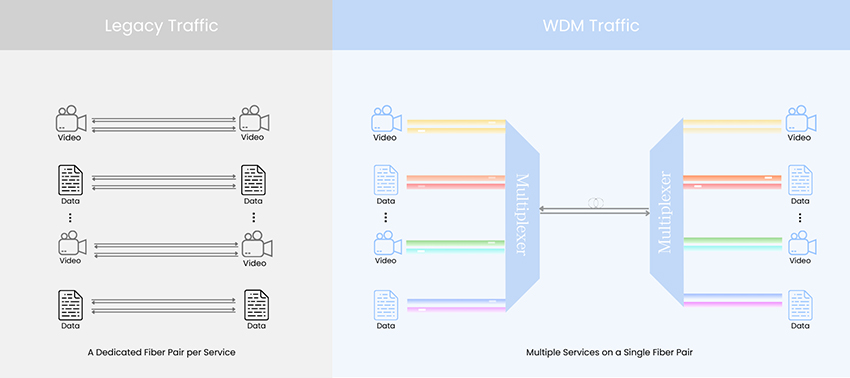

1. Maximize Your Fiber, Minimize Your Costs
Wavelength Division Multiplexing (WDM) technology unlocks the true potential of your fiber infrastructure. Instead of dedicating a fiber pair to a single service, WDM allows you to transmit multiple independent data streams simultaneously over the same fiber. This approach not only maximizes the efficiency of your existing fiber but also generates substantial savings by eliminating the need for costly new fiber deployments.

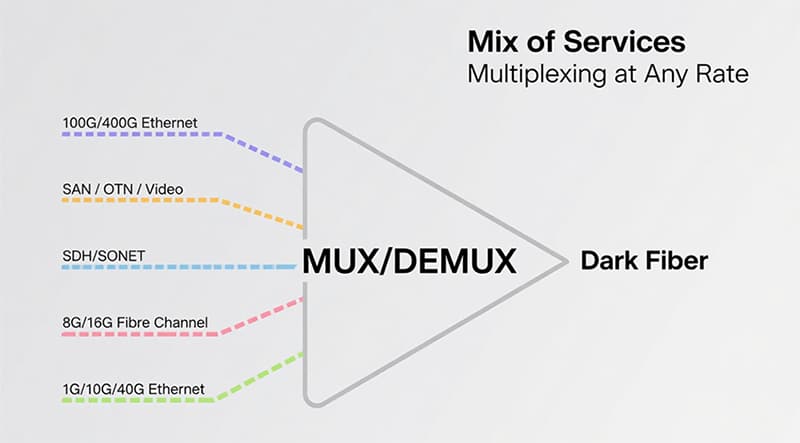

2. Transmit Any Service, at Any Rate
Our DWDM Mux Demux is completely transparent to data rates and protocols. This means you can flexibly mix and match a wide variety of services—from 1G/10G/40G Ethernet to 100G/400G coherent links, Fibre Channel, SDH/SONET, and video—all running simultaneously over their own private wavelength. It's like having 40 virtual fiber optic cables within a single physical pair.
Ideal Application Scenarios
This high-density DWDM Mux Demux is a versatile solution for a wide range of network architectures:
Data Center Interconnect (DCI): Massively scale bandwidth between data centers over existing dark fiber. The low PMD and high isolation make it ideal
for high-speed coherent links (100G/400G).
Telecom & Carrier Networks: Aggregate multiple client services at hub sites and expand the capacity of metro and long-haul networks. The 1310nm port
is perfect for integrating older client equipment.
Enterprise Backbone Expansion: Connect corporate headquarters, campuses, and branch offices with a high-capacity, future-proof fiber backbone.
