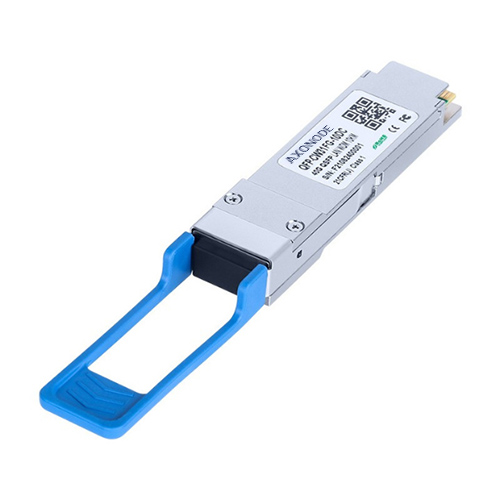

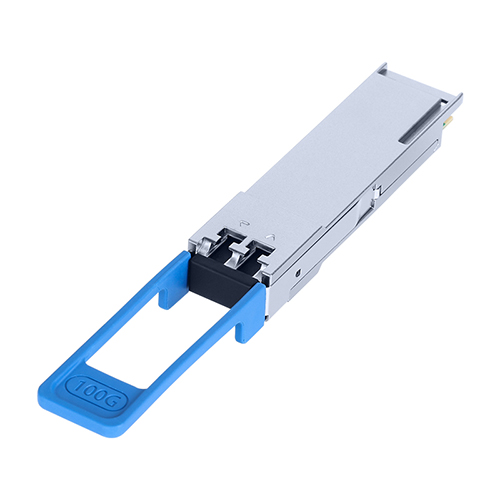

100GBASE-LR4 QSFP28 Optical Transceiver, 10km, SMF, LC Duplex
The Axonode 100GBASE-LR4 QSFP28 transceiver is engineered to deliver reliable 100Gb/s performance for long-reach network applications. It transmits data across single-mode fiber for distances up to 10km, making it a high-performance and cost-effective solution for data center interconnects, enterprise core layers, and campus backbones. Fully compliant with IEEE 802.3ba and QSFP28 MSA standards, this module ensures seamless interoperability and carrier-grade reliability.
Description
Package Information
Inquiry
Robust 100Gb/s performance for long-reach enterprise and data center applications.
Features
100GBASE-LR4 compliant per IEEE 802.3ba
Up to 10km reach over Single-Mode Fiber (SMF)
Hot-pluggable QSFP28 MSA form factor
Low power consumption (< 3.5W)
Standard Duplex LC optical connector
Built-in Digital Diagnostics (DDM/DOM)
Application
Data Center Interconnects (DCI)
Enterprise Core and Aggregation Networks
Campus Network Backbones
High-Performance Computing (HPC) Clusters
Service Provider Networks
High-speed connections for storage networks
Parameter Table
| Part Number | A-QSFP28-LR4 | Vendor Name | Axonode |
| Form Factor | QSFP28 | Data Rate | 100Gbps |
| Wavelength | 1295~1310nm | Distance | 10km |
| Connector | LC Duplex | Fiber Type | SMF |
| Transmitter Type | 4*LAN WDM DFB | Receiver Type | PIN |
| TX Power | - 4.3 ~ 4.5dBm | Receiver Sensitivity | < -8.6dBm |
| Power Consumption | < 3.5W | Temperature | 0 to 70°C (32 to 158°F) |
| DDM | Support | Bit Error Ratio (BER) | ≤1E -12 |
| Protocols | IEEE 802.3ba,SFF-8636, QSFP28 MSA Compliant | Warranty | 3 Years |
Our Commitment to Quality and Speed
We implement a rigorous quality control system, including part serialization and multiple testing phases, to guarantee performance and ensure rapid delivery.
Order Information
Part No. | Description |
| A-QSFP28-SR4 | 100G SR4 QSFP28 Transceiver MMF 850nm 300m LC DOM 0-70℃ |
| A-QSFP28-IR4 | 100G IR4 QSFP28 Transceiver SMF 1310nm 2kM LC DOM 0-70℃ |
| A-QSFP28-LR4-I | 100G LR4 QSFP28 Transceiver SMF LANWDM4 10km LC DOM -40-85℃ |
| A-QSFP28-CWDM-LR4 | 100G LR4 QSFP28 Transceiver SMF CWDM4 10km LC DOM 0-70℃ |
| A-QSFP28-ER4 | 100G ER4 QSFP28 Transceiver SMF LANWDM4 40km LC DOM 0-70℃ |
| A-QSFP28-ZR4 | 100G ZR4 QSFP28 Transceiver SMF LANWDM4 80km LC DOM 0-70℃ |
A-QSFP28-ZR4+ | 100G ZR4+ QSFP28 Transceiver SMF LANWDM4 100km LC DOM 0-70℃ |
Compatibility Brand
Cisco | Juniper | Arista | Mellanox | Fortinet | MikroTik | H3C | Dell |
| QSFP-100G-LR4-S | JNP-QSFP-100G-LR4 | QSFP-100G-LR4 | MMA1L10-CR | FN-TRAN-QSFP28-LR | Q28+31DLC10D | QSFP-100G-LR4-WDM1300 | 407-BCDH |
Extreme Networks | D-Link | Brocade | |||||
| 100G-QSFP28-LR4-10KM | DEM-Q2810Q-LR4 | 100G-QSFP28-LR4-10KM |
