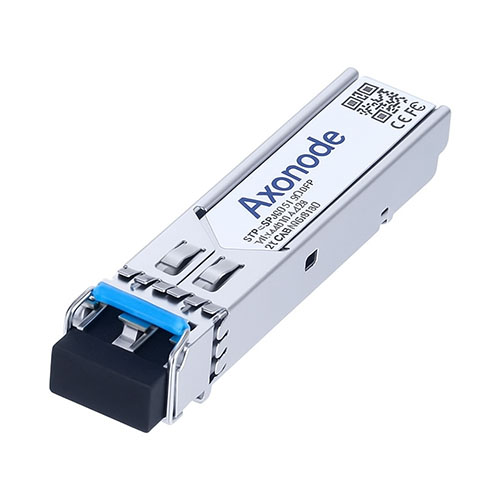

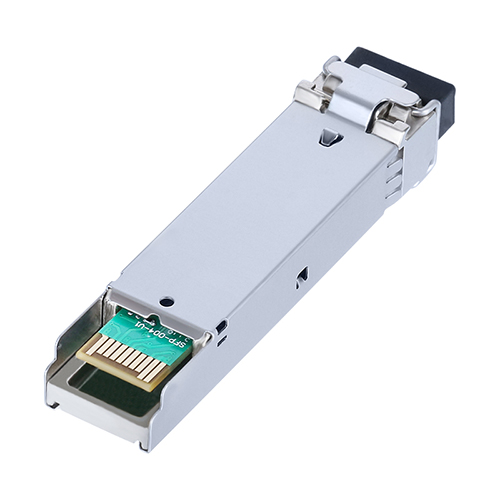

1000GBASE-LX/LH SFP 1310nm 10km Optical Transceiver Module
The 1.25G 1000Base-LX SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Description
Package Information
Inquiry
1000BASE-LX/LH SFP 1310nm 10km Optical Transceiver Module
Features
Digital Diagnostics (DDM): Enables real-time monitoring of module performance.
Low Power Consumption: Highly efficient with a maximum power draw of only 1W.
Broad Compatibility: Fully tested and compatible with over 100+ vendors.
Industry Standards Compliant: Adheres strictly to SFP MSA and SFF-8472 specifications.
Connector Type: Duplex LC Connector for reliable fiber optic connections.
Application
Campus Networks
Enterprise LAN Networks
Other 1000BASE-LX/LH Optical Links
Parameter Table
| Part Number | SFP-1G-LX/LH | Vendor Name | Axonode |
| Form Factor | SFP | Data Rate | 1.25Gbps |
| Wavelength | 1310nm | Distance | 10km/20km |
| Connector | LC Duplex | Cable Type | OS2 SMF |
| Transmitter Type | FP | Receiver Type | PIN |
| TX Power | -9 ~ 0dBm | Receiver Sensitivity | < -23dBm |
| Power Consumption | < 1W | Temperature | -45 to 80°C (32 to 158°F) |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA Compliant | Warranty | 3 Years |

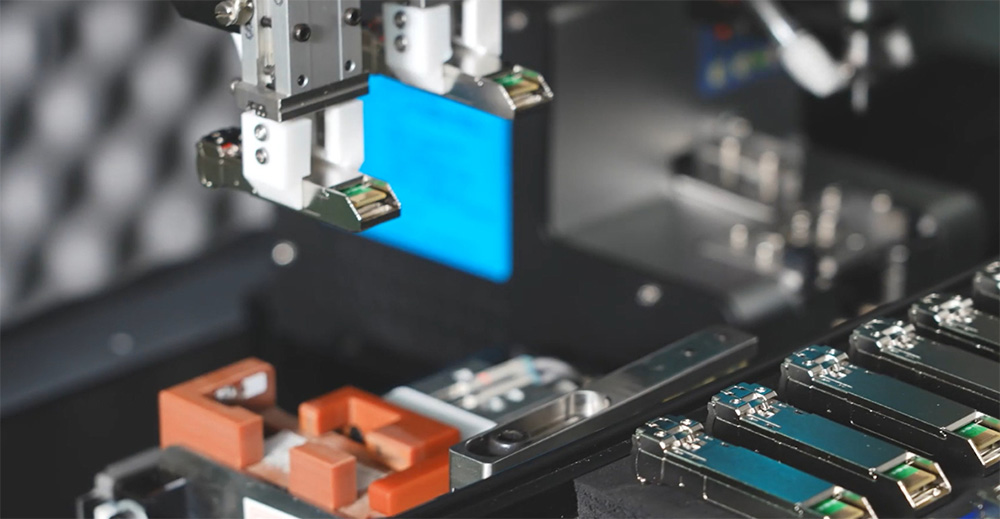

Our Commitment to Quality and Speed
We implement a rigorous quality control system, including part serialization and multiple testing phases, to guarantee performance and ensure rapid delivery.
Order Information
Part No. | Description |
| A-SFP-MM8524-S5DI | 1.25G SX SFP Transceiver MMF 850nm 550m LC DOM 40-85℃ |
| A-SFP-MM3124-02DI | 1.25G SFP Transceiver MMF 1310nm 2km LC DOM -40-85℃ |
| A-SFP-MM3124-20DI | 1.25G SFP Transceiver SMF 1310nm 20km LC DOM -40-85℃ |
| A-SFP-MM3124-40DI | 1.25G SFP Transceiver SMF 1310nm 40km LC DOM -40-85℃ |
| A-SFP-MM5524-40DI | 1.25G SFP Transceiver SMF 1550nm 40km LC DOM -40-85℃ |
| A-SFP-MM5524-80DI | 1.25G SFP Transceiver SMF 1550nm 80km LC DOM -40-85℃ |
| A-SFP-MM5524-A2DI | 1.25G SFP Transceiver SMF 1550nm 100km LC DOM -40-85℃ |
| A-SFP-MM5524-A4DI | 1.25G SFP Transceiver SMF 1550nm 120km LC DOM -40-85℃ |
Compatibility Brand
Cisco | HPE | Finisar | Arista | Juniper | H3C | Fortinet |
| GLC-GE-DR-LX GLC-LH-SM MA-SFP-1GB-LX10 MGBLX1 GLC-LH-SM-20 | J4859A J4859B J4859C J4859D | FTLF1318P3BTL | SFP-1G-LX SFP-1G-LX-20 | EX-SFP-1GE-LX SFP-1GE-LX-20 QFX-SFP-1GE-LX | JD119B SFP-GE-LX-SM1310 SFP-GE-LX-SM1310-A SFP-GE-LX-SM1310-20 | FN-TRAN-LX |
Dell | Brocade | |||||
| SFP-1GE-LX | E1MG-LX-A E1MG-LX-OM E1MG-LX-20 |
